85 cm
104 cm
FlatSat SkeW eaSY SMaRt 65
OPtION -
tWIN
for 2 receivers
Weight
: 10,8 Kg. ca
FlatSat SkeW eaSY SMaRt 85
OPtION -
tWIN
for 2 receivers
Weight
: 12,0 Kg. ca
aVaIlaBle MODelS
Control Unit DVB-S2 HD
• Power Supply: 12 Volt
• Max Consumption: 3,2 A
• Size: 136x198x62 mm
• Weight: 780 g

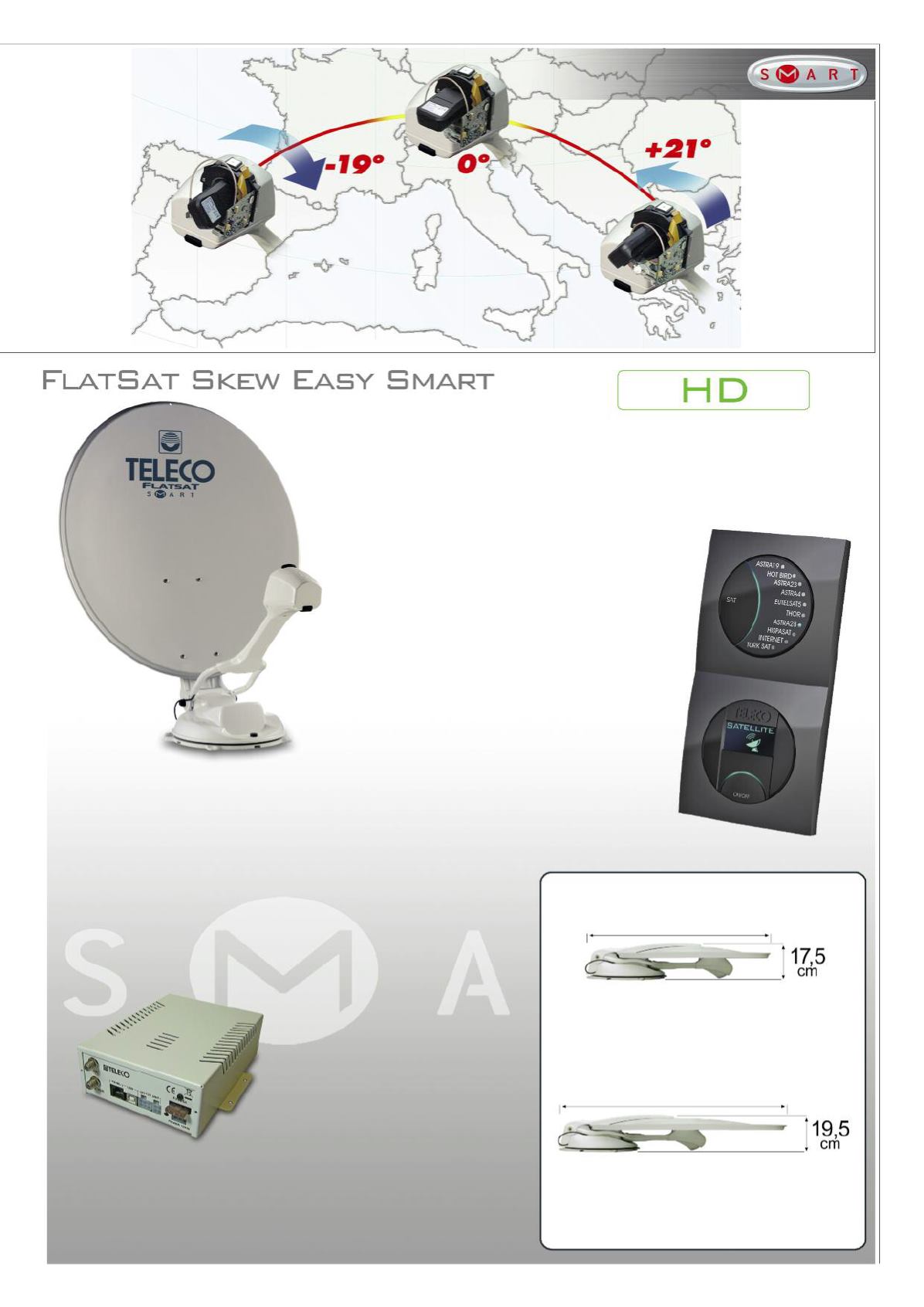

FLATSAT SKEW EASY SMART
consists of:
1 External Satellite Antenna
1 DVB-S2 Control Unit complete with leads
1 Intelligent control panel
SKEW Automatic Satellite Antenna
The FlatSat Skew Easy SMART features, in addition to
the SKEW function with automatic LNB positioning,
the SMART function (patent pending) which makes
watching your favourite TV programmes via satellite
even easier. Just press the ON-OFF key on the
intelligent control panel and select a programme on
the Sat Receiver or Sat TV. The antenna is
automatically raised and tracked until it is pointing at
the satellite that transmits the selected programme
while the LNB is simultaneously rotated into the
maximum signal strength position.
If you change channel, the SMART system immediately
checks which satellite is transmitting it and automatically
repositions the antenna in a matter of seconds.
The FlatSat Skew Easy SMART is compatible with all Satellite
Receivers and TVs featuring the DiSEqC function (Tivùsat,
TNT Sat, Fransat, SKY, Canal Digitaal,
TV Vlaanderen, Telesat etc.) and especially with all the
TELECO 2014 models.
The new intelligent control panel (patent pending) lets you
control your antenna using just
2 keys:
•
The ON-OFF key switches the antenna on and starts the
search for the selected satellite or lowers the antenna and
switches it off.
•
The SAT key is used to select one of the 10 satellites stored
in the memory (Astra 19, Hot Bird, Astra 23, Astra 4, Eutelsat
5W, Astra 28, Thor, Hispasat, Turksat, Internet).
•
It features an OLED screen able to display all the tasks
carried out by the antenna; the screen switches off
automatically a few seconds after the completion of each
task.
•
The panel is completed with a coal-grey frame from the
Berker line that can easily be replaced with other differently
coloured panels available on the market.
•
Safety system with automatic antenna closure whenever
the vehicle engine is started.
