Control Unit DVB-S2 HD
• Power Supply: 12 Volt
• Max Consumption: 3,2 A
• Size: 136x198x62 mm
• Weight: 780 g
FlatSat eaSY SMaRt 85
OPtION -
tWIN
for 2 receivers
Weight: Kg. 11,6 ca
Dish size: 91x85 cm
FlatSat eaSY SMaRt 65
OPtION -
tWIN
for 2 receivers
Weight: Kg. 10,5 ca
Dish size: 72x67 cm
FlatSat eaSY SMaRt 50
OPtION -
tWIN
for 2 receivers
Weight: Kg. 8,8 ca
Dish size: 49x45,5 cm
63 cm
85 cm
104 cm
9

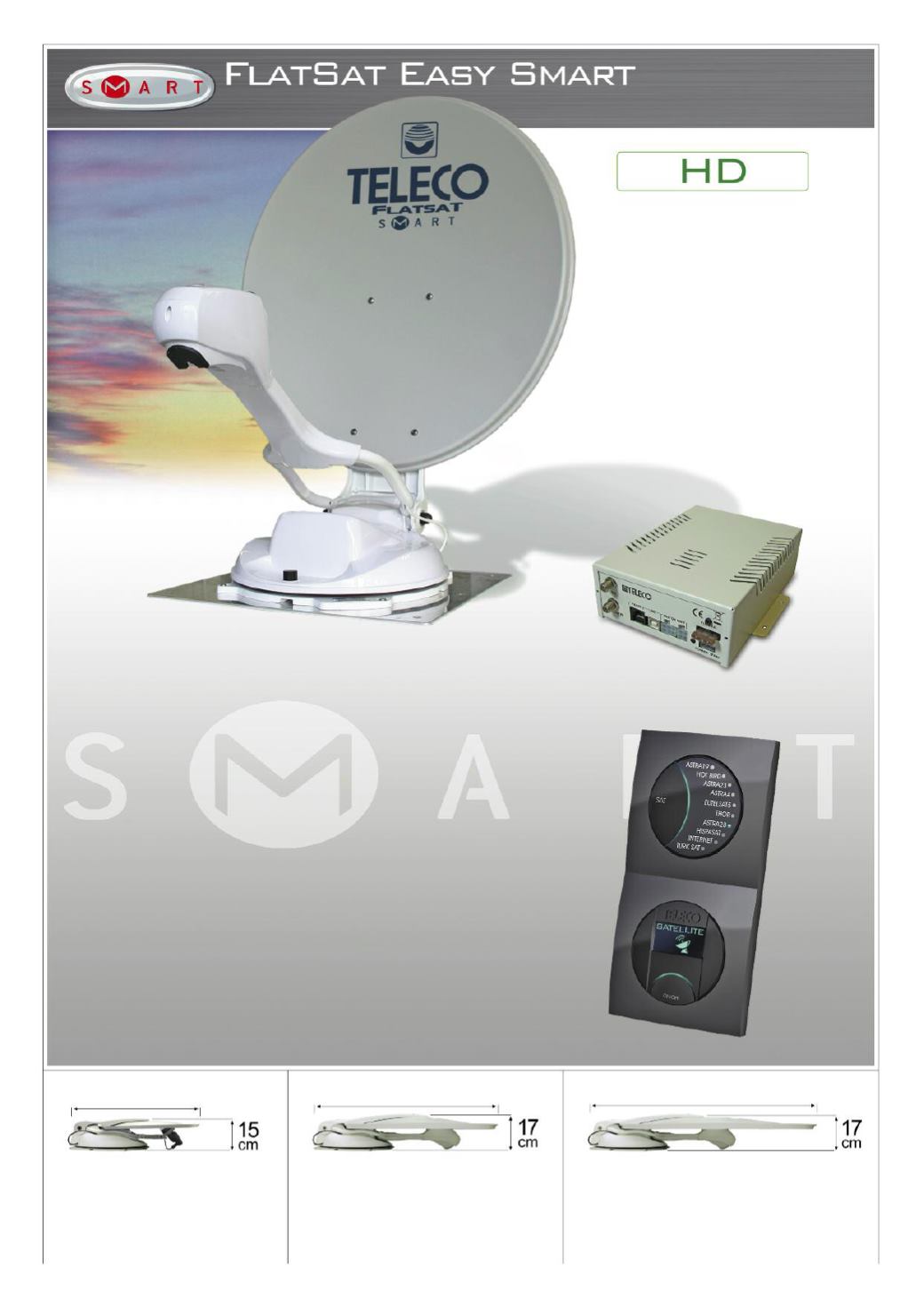

FLATSAT EASY SMART
consists of:
1 External Satellite Antenna
1 DVB-S2 Control Unit complete with leads
1 Intelligent control panel
SMART (patent pending) is a function that
will make watching your favourite
television programmes via satellite even
simpler.
Just press the ON-OFF key on the intelligent
control panel and select a programme on
the Sat Receiver or Sat TV. The antenna is
automatically raised and tracked until it is
pointing at the satellite that transmits the
selected programme.
If you change channel, the SMART system
immediately checks which satellite is
transmitting it and automatically
repositions the antenna in a matter of
seconds.
The FlatSat Easy SMART is compatible with
all Satellite Receivers and TVs featuring the
DiSEqC function (Tivùsat, TNT Sat, Fransat,
SKY, Canal Digitaal, TV Vlaanderen, Telesat
etc.) and especially with all the TELECO
2014 models.
HD Automatic Satellite Antenna
The new intelligent control panel (patent
pending) lets you control your antenna
using just
2 keys:
• The ON-OFF key switches the antenna on
and starts the search for the selected
satellite or lowers the antenna and switches
it off.
• The SAT key is used to select one of the
10 satellites stored in the memory (Astra 19,
Hot Bird, Astra 23, Astra 4, Eutelsat 5W,
Astra 28, Thor, Hispasat, Turksat, Internet).
• It features an OLED screen able to display
all the tasks carried out by the antenna; the
screen switches off automatically a few
seconds after the completion of each task.
• The panel is completed with a coal-grey
Berker frame that can easily be replaced
with other differently coloured panels
available on the market.
• Safety system with automatic antenna
closure whenever the vehicle engine is
started.
