6
Control Unit DVB-S2 HD
• Power Supply: 12 Volt
• Max Consumption: 3,2 A
• Size: 136x198x62 mm
• Weight: 980 g
FLATSAT ELEGANCE SMART
consists of:
1 External Satellite Antenna
1 DVB-S2 Control Unit complete with leads
1 TV mod. TY2 with built-in Satellite
Receiver equipped with Remote Control.
TS8
simplified 8-button
remote control
( Optional )
63 cm
85 cm
104 cm
FlatSat eleGaNce SMaRt 85
OPtION -
tWIN
for 2 receivers
Weight: Kg. 11,6 ca
Dish size: 91x85 cm
FlatSat eleGaNce SMaRt 65
OPtION -
tWIN
for 2 receivers
Weight: Kg. 10,5 ca
Dish size: 72x67 cm
FlatSat eleGaNce SMaRt 50
OPtION -
tWIN
for 2 receivers
Weight: Kg. 8,8 ca
Dish size: 49x45,5 cm

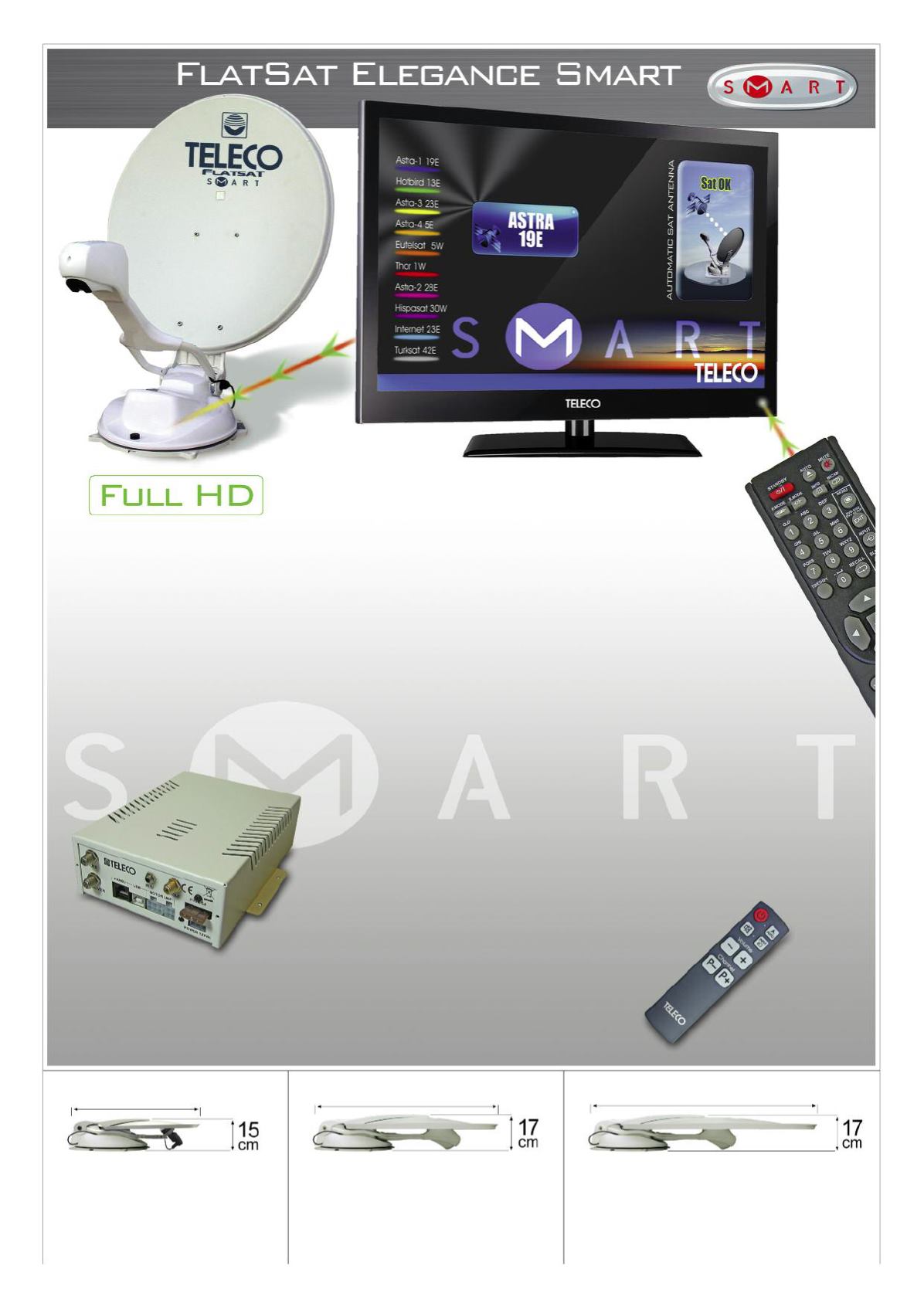

Automatic Satellite Antenna with TV
All you need to do is switch on your TELECO TY2 television by
pressing the dedicated AUTO key on the remote control.
The FlatSat Elegance SMART ( patent pending ) will handle all the
rest: it starts the antenna, searches for the satellite transmitting the
selected programme, tracks the antenna towards it and sends the
images straight to your screen. All in just a few seconds.
It can be operated at any time via your Remote Control.
If you decide to change channel, the FlatSat Elegance SMART
immediately checks which satellite this programme is being
transmitted by and automatically tracks the antenna so it is
pointing at the right satellite.
If you switch off the TV by pressing the AUTO key, the antenna is
automatically lowered and the system is shut down.
To make your life even simpler, the TV comes with a pre-saved list of
your country’s favourite programmes: the list can, of course, be
modified as you please.
All the most important satellites are stored in the memory: Astra 19,
Hot Bird, Astra 23, Eutelsat 5W, Astra 4, Astra 28, Thor, Hispasat,
Turksat, Internet.
An ever-alert safety system closes the antenna and switches off the TV
immediately whenever the vehicle engine is started.
Each individual stage of Satellite Tracking and Antenna Closure is
displayed on the TV screen.
In addition to the remote control provided together with the TV a
simplified remote control with just 8 large keys (optional) is also
available. This can be used to perform most of the functions
provided by the TV remote control.
