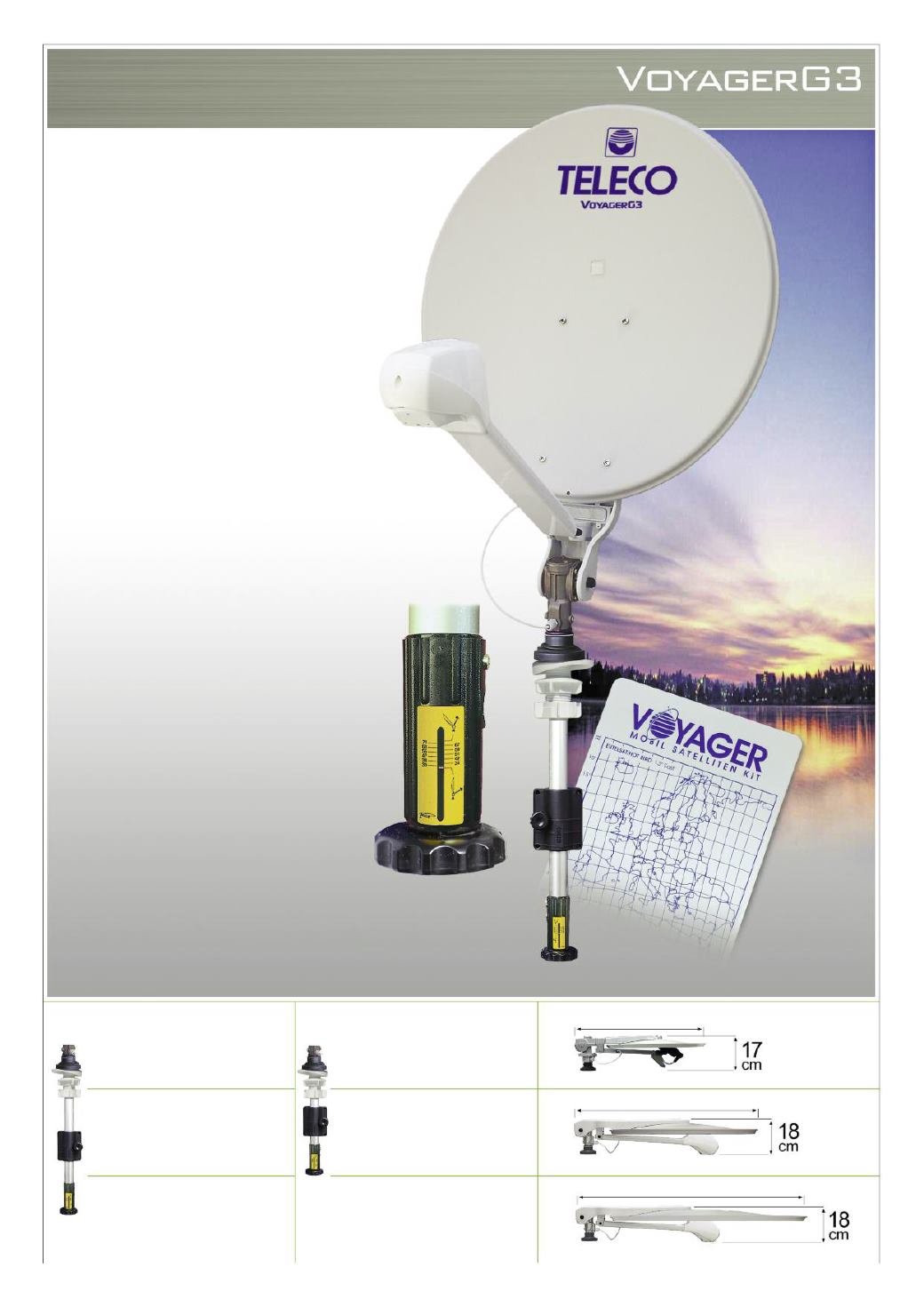

Manual Satellite Antenna
with Graduated Scale
VOYAGER G3 is equipped with a Graduated Scale
enabling the angle of the dish to be set extremely
quickly, while remaining inside the vehicle. To
correctly set the angle, it is important that the
vehicle is level, if it is not you must add to or
subtract the vehicle angle from that of the dish.
After setting the correct angle, you just need to turn
the dish so it is pointing southwards using the
internal mast, and optimise positioning by
checking the picture on your TV screen.
To make Digital Satellite pointing ever faster and
easier, install our new DSF80 (optional) Digital
Finder
Each Kit contains:
• Pre-assembled satellite antenna, complete
with folding mast and connecting cables.
• Universal LNB
• Dish
• Installation and operation manual
Kg 6,80
Kg 9,20
Kg 11,40
65 cm
88 cm
106 cm
33 cm short mast
VOYaGeR G3 SM 50:
49x45,5cm dish
VOYaGeR G3 SM 65:
72x67 cm dish
VOYaGeR G3 SM 85:
91x85 cm dish
52 cm long mast
VOYaGeR G3 50:
49x45,5 cm dish
VOYaGeR G3 65:
72x67 cm dish
VOYaGeR G3 85:
91x85 cm dish
